H04-025

Die Springs LOW — UNION CITY
https://www.toolingcomponent.com/web/image/product.template/90641/image_1920?unique=9280c80

Heavy Duty Die Spring - Gold - 3/8 x 2 1/2

$ 3.56 3.56 USD $ 3.56

Not Available For Sale

  • Free Length (in) [Lo]
  • Brand
  • Housing Diameter (in) [D]
  • Rod Diameter (in) [d]
  • Rate (lbs/in) [R]
  • Stroke (in) for 30% Lo [S1]
  • Load (lbs) for 30% Lo [F1]
  • Stroke (in) for 40% Lo [S2]
  • Load (in) for 40% Lo [F2]
  • Smax
  • S3
  • F3
  • Unit Weight (lbs)

This combination does not exist.

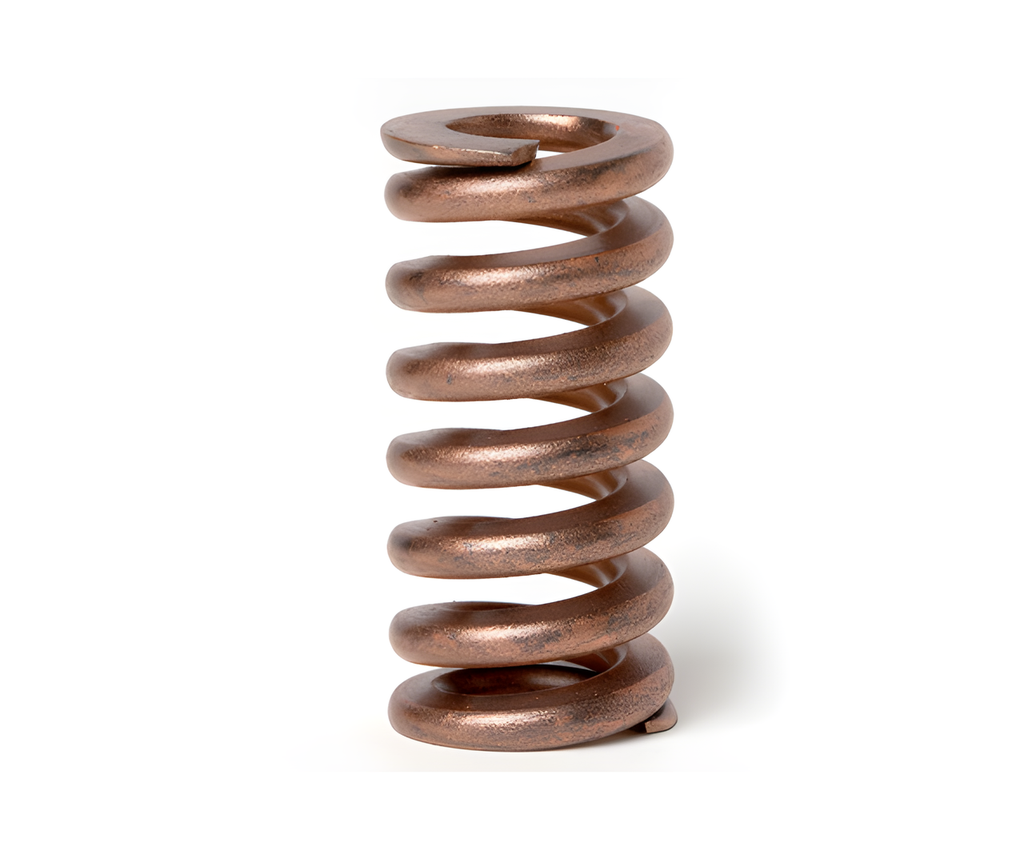

Raymond Gold Heavy Duty Die Spring — 3/8″ x 2 1/2″

Raymond® US Standard Inch Series die spring in the original Raymond trademark gold color, heavy duty pressure rating. Built from high tensile strength chromium alloy steel with square, flat ends for a reliable, maximum load-carrying surface.

  • Part number: H04-025
  • Size: 3/8″ x 2 1/2″ (hole diameter x free length)
  • Heavy Duty rating — efficient operating range 15–25% of free length, maximum deflection 25%
  • High fatigue life — longer up-time between maintenance teardowns
  • Square ends provide a flat, maximum load-carrying surface

Raymond gold die springs deliver higher force per inch of deflection than conventional compression springs, making them ideal for sheet metal forming, stamping dies, and press tool applications that must store and release energy cycle after cycle.

Order today from Tooling Components — heavy duty gold die springs in stock with same-day quotes and fast shipping nationwide.

Contact Us
Request a Quote Call 814-438-7657
Free Length (in) [Lo]2.5
BrandRaymond, Bordignon Springs
Housing Diameter (in) [D]3/8
Rod Diameter (in) [d]3/16
Rate (lbs/in) [R]5
Stroke (in) for 30% Lo [S1]0.38
Load (lbs) for 30% Lo [F1]19
Stroke (in) for 40% Lo [S2]0.5
Load (in) for 40% Lo [F2]25
Smax0.75
S30.63
F331.5
Unit Weight (lbs)0.02205

Standards & Equivalents

Inch, DIN and JIS equivalents cross-referenced by our engineers. CAD files, material certificates and dimensional reports available on request.

Quality:Inspected to PrintVeteran-Owned

This product has no valid combination.

Free Length (in) [Lo]: 2.5
Housing Diameter (in) [D]: 3/8
Rod Diameter (in) [d]: 3/16
Rate (lbs/in) [R]: 5
Stroke (in) for 30% Lo [S1]: 0.38
Load (lbs) for 30% Lo [F1]: 19
Stroke (in) for 40% Lo [S2]: 0.5
Load (in) for 40% Lo [F2]: 25
Smax: 0.75
S3: 0.63
F3: 31.5
Unit Weight (lbs): 0.02205
