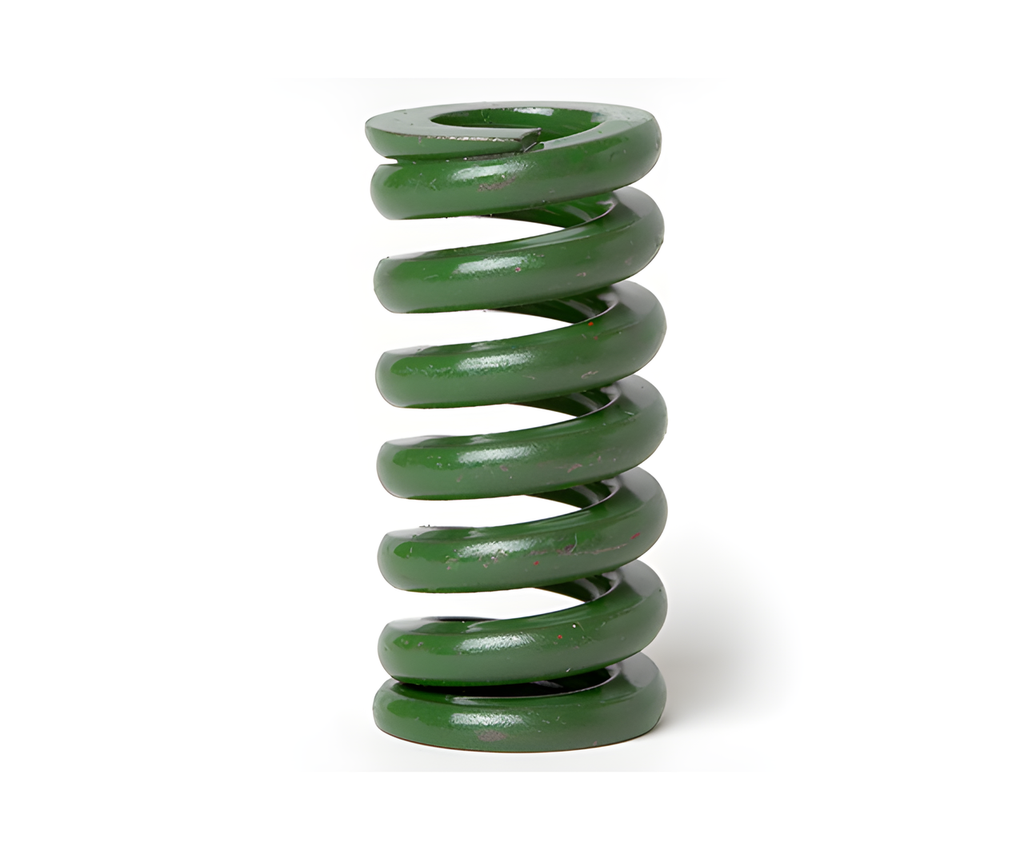

Raymond Green Extra Heavy Duty Die Spring — 3/8″ x 1″

Raymond® US Standard Inch Series die spring in the original Raymond trademark green color, extra heavy duty pressure rating. Built from high tensile strength chromium alloy steel with square, flat ends for a reliable, maximum load-carrying surface.

Part number: XH04-010
Size: 3/8″ x 1″ (hole diameter x free length)
Extra Heavy Duty rating — efficient operating range 15–20% of free length, maximum deflection 20%
High fatigue life — longer up-time between maintenance teardowns
Square ends provide a flat, maximum load-carrying surface

Raymond green die springs deliver higher force per inch of deflection than conventional compression springs, making them ideal for sheet metal forming, stamping dies, and press tool applications that must store and release energy cycle after cycle.

Order today from Tooling Components — extra heavy duty green die springs in stock with same-day quotes and fast shipping nationwide.

Brand	Raymond
Housing Diameter (in) [D]	3/8
Rod Diameter (in) [d]	3/16
Free Length (in) [Lo]	1
Rate (lbs/in) [R]	21
Stroke (in) for 30% Lo [S1]	0.15
Load (lbs) for 30% Lo [F1]	31.5
Stroke (in) for 40% Lo [S2]	0.17
Load (in) for 40% Lo [F2]	35.7
Smax	0.25
S3	0.2
F3	42
Unit Weight (lbs)	0.00935

Brand	Bordignon Springs
Housing Diameter (in) [D]	3/8
Rod Diameter (in) [d]	3/16
Free Length (in) [Lo]	1
Rate (lbs/in) [R]	21
Stroke (in) for 30% Lo [S1]	0.15
Load (lbs) for 30% Lo [F1]	31.5
Stroke (in) for 40% Lo [S2]	0.17
Load (in) for 40% Lo [F2]	35.7
Smax	0.25
S3	0.2
F3	42
Unit Weight (lbs)	0.00935

Free Length (in) [Lo]	1
Brand	Raymond, Bordignon Springs
Housing Diameter (in) [D]	3/8
Rod Diameter (in) [d]	3/16
Rate (lbs/in) [R]	21
Stroke (in) for 30% Lo [S1]	0.15
Load (lbs) for 30% Lo [F1]	31.5
Stroke (in) for 40% Lo [S2]	0.17
Load (in) for 40% Lo [F2]	35.7
Smax	0.25
S3	0.2
F3	42
Unit Weight (lbs)	0.00935

XH04-010

$ 2.26 2.2600000000000002 USD $ 2.26

Not Available For Sale

Standards & Equivalents
