Graphite accounts for over 70% of EDM electrode material used in the mold and die industry — and for good reason. Its combination of high thermal conductivity, low coefficient of thermal expansion, and excellent machinability makes it the default choice for most sinker EDM applications. However, selecting the wrong graphite grade remains one of the most common — and costly — errors in EDM operations.

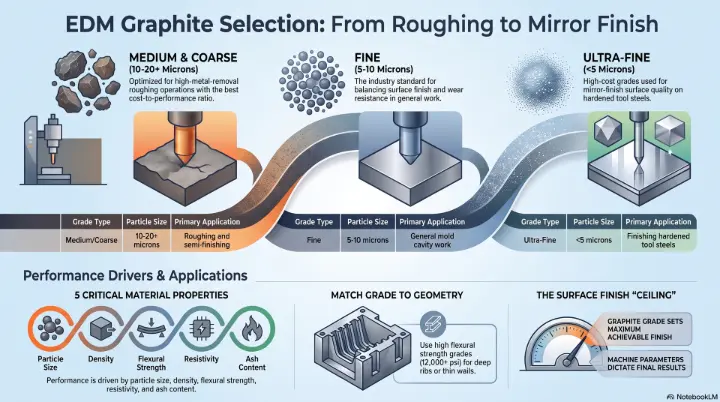

The Graphite Grade Spectrum
EDM graphite grades fall along a continuum from ultra-fine to coarse. Understanding this spectrum is essential: Ultra-fine grades (average particle size under 5 microns) deliver mirror-finish surface quality on hardened tool steels but cost significantly more and wear faster; Fine grades (5-10 microns) balance surface finish and wear resistance for general mold cavity work; Medium grades (10-20 microns) offer the best cost-to-performance ratio for roughing and semi-finishing operations; and Coarse grades (20+ microns) excel in high-metal-removal roughing applications where surface finish is secondary.
Material Properties That Drive Selection
Five properties determine graphite grade performance in EDM: Particle size directly correlates to achievable surface finish — smaller particles yield finer finishes; Density affects electrode wear rate, with higher-density grades lasting longer; Flexural strength determines how well thin features hold up during EDM; Electrical resistivity influences metal removal rate; and Ash content matters for precision applications — low-ash grades minimize contamination in the dielectric fluid.
Application Matching Guide
For roughing cavities in pre-hardened P-20 steel — use medium-grade graphite with large cross-sections and high amperage settings. For finishing fine detail in H-13 tool steel — switch to fine or ultra-fine graphite grades, lower amperage, and controlled pulse-on times. For deep ribs or thin wall sections — select high flexural strength grades (12,000+ psi) to resist breakage. For production EDM with long unattended runs — choose high-density fine grades that balance wear resistance with surface finish requirements.
Common Pitfall: Surface Finish Expectations
A common mistake is assuming that fine-graphite automatically produces fine finishes. The graphite grade sets the ceiling on achievable surface finish — but machine parameters, dielectric flushing, and electrode geometry all contribute equally. Even ultra-fine graphite will produce a rough finish if the EDM parameters are set for high metal removal rates.
