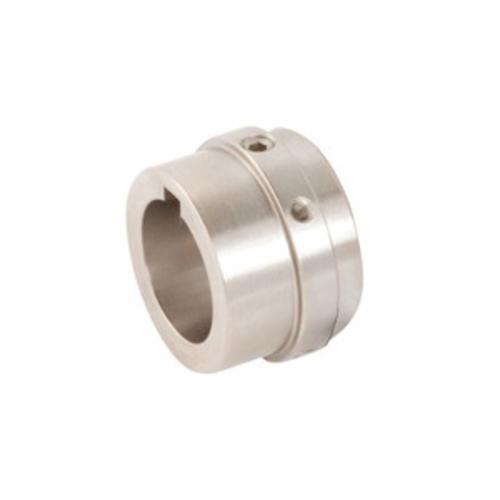

10 HSB x 1-5/8 Omega
Rexnord 10 HSB x 1-5/8, 10 HSB STL 1.625" BORE 3/8" X 3/16" KWY, Omega Coupling Straight Bore Style-Stock Bore (HSB) Hubs, 7300360
| Series | Hubs |
|---|---|
| Product | Omega Hubs |
| Coupling Size | 10 |
| Coupling Type | Elastomeric |
| Hub Barrel Outside Diameter (in) | 3.3 |
| Hub Length (in) | 1.88 |
| Hub Style | Standard Bore (HSB) |
| Hub Material | Steel |
| Hub Bore Fit | Clearance |
| Hub Shoulder Diameter (in) | 3.65 |
| Hub Straight Bore Diameter [Max] (in) | 1.626 |
| Hub Straight Bore Diameter [Min] (in) | 1.625 |
| Number of Keyways | 1 |
| Number of Set Screws | 1 |
| Hub Straight Bore Diameter [Nom] (in) | 1.625 |
| Keyway Depth (in) | 0.1875 |
| Keyway Width (in) | 0.375 |
Standards & Equivalents
Inch, DIN and JIS equivalents cross-referenced by our engineers. CAD files, material certificates and dimensional reports available on request.
Quality:Inspected to PrintVeteran-Owned
This product has no valid combination.
| Series: Hubs |
| Product: Omega Hubs |
| Coupling Size: 10 |
| Coupling Type: Elastomeric |
| Hub Barrel Outside Diameter (in): 3.3 |
| Hub Length (in): 1.88 |
| Hub Style: Standard Bore (HSB) |
| Hub Material: Steel |
| Hub Bore Fit: Clearance |
| Hub Shoulder Diameter (in): 3.65 |
| Hub Straight Bore Diameter [Max] (in): 1.626 |
| Hub Straight Bore Diameter [Min] (in): 1.625 |
| Number of Keyways: 1 |
| Number of Set Screws: 1 |
| Hub Straight Bore Diameter [Nom] (in): 1.625 |
| Keyway Depth (in): 0.1875 |
| Keyway Width (in): 0.375 |
